Labeling System for Barcode Clips

Challenges

The width of each barcode clip had to be measured before labeling. The label needed to be positioned with high precision (tolerance ±0.1 mm). Each label carried a unique identification number that had to be verified by a camera system. Non-conforming labels had to be reliably rejected through a validated software-controlled process.

Our Solution

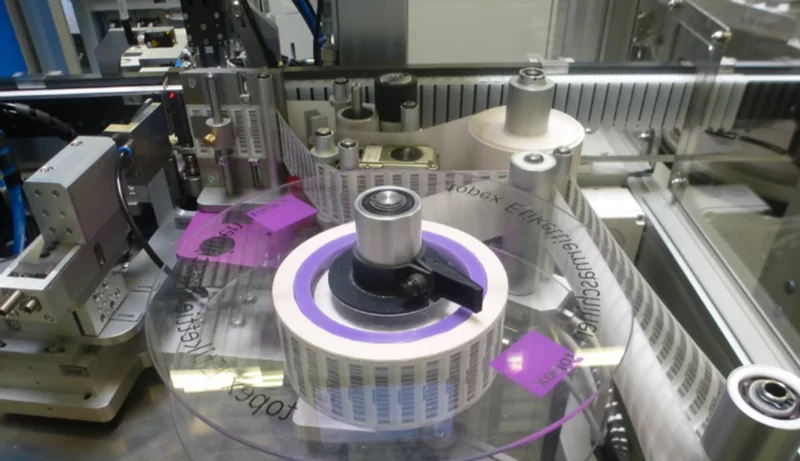

Clips are fed as bulk material via a vibratory bowl system. During labeling, each clip is precisely fixed across three axes. The label is pre-aligned on a vacuum plate in two axes before being applied. Two camera systems verify both the clip dimensions and the uniqueness of the label number. IO/NIO sorting is executed actively, controlled by a validated software module.

Special Features

The combination of high-precision fixture positioning, two-axis label alignment, and dual camera inspection enables reproducible labeling quality within a tenth-millimeter tolerance range. With validated software and a clearly defined NIO strategy, the system is well suited for industrial applications with stringent quality requirements.

Processes

  • Labeling

    Labeling

    Our labeling solutions cover performance classes from manual loading to 60 and 150 pieces per minute and support round, flat, and elliptical products. The systems can be flexibly combined with palletizers and tray loaders.
